Industrial D Series Floor Type Energy Recovery Ventilators

Main Feature of Floor Standing Large Airflow D Series Energy Recovery Ventilators

Wide range of airflow, suitable for more application

High efficiency, over 70%

LCD control equipped

Air filtration and purification

High airproof feature and easy maintenance

Flexible and remote setting of control box

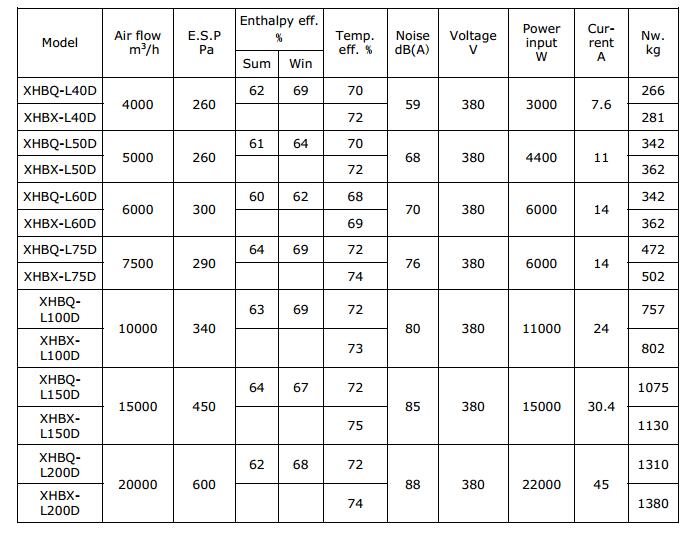

Specifications of Floor Standing Large Airflow D Series Energy Recovery Ventilators

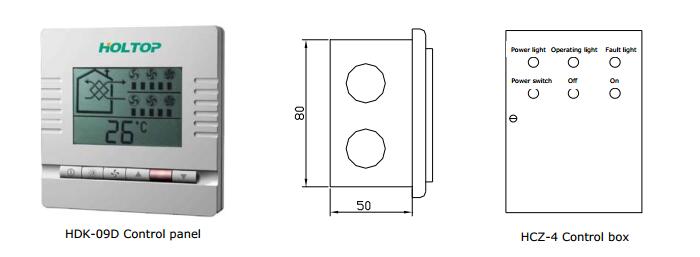

Floor Standing Heat Energy Recovery Ventilators Controller:

XHBQ(X)-L40D~L60D (HDK-09D), The control panel is sent together with the heat recovery ventilator, the body of which can be concealed in the wall, and panel is exposed outside. User should prepare the cables, and the cables on the control is for commissioning use.
XHBQ(X)-L75D~L200D (HCZ-4), The control box is sent together with the heat recovery ventilator. It will be fixed on the ventilator and the wiring is completed when ex-factory. If need to put the control box to other place, please remove it from the ventilator and after fixing in new place. Then connect the cable according to the wiring diagram again.

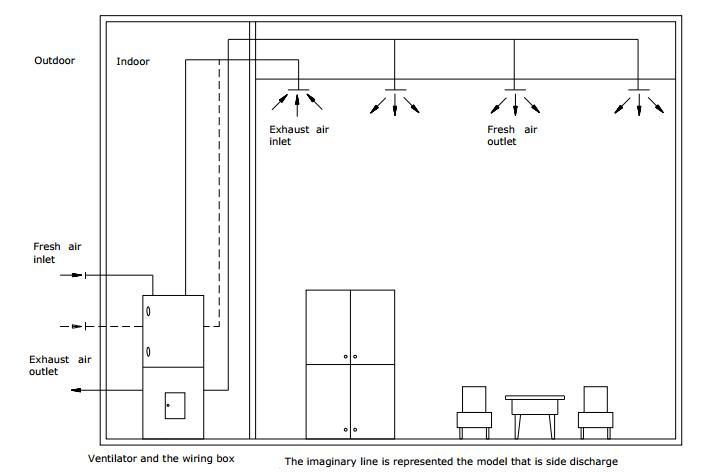

Floor Standing Heat Energy Recovery Ventilators Installation:
